How do ejectors work?
Sarah Smith news
In respect to this, how does a steam ejector work?

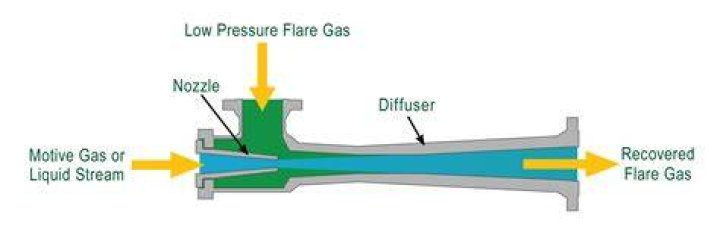

The working principle of the ejector is based on the expansion of a high-pressure steam jet in the converging/diverging nozzle section. The internal energy of the motive steam is converted to kinetic energy. The high-speed steam jet (primary fluid) entrains the low-pressure secondary steam jet (secondary fluid).
Additionally, what is water ejector? Water ejectors are vacuum pumps, driven by a high pressure water (or similar medium) or steam. They use kinetic energy of the driving medium to suck in gases, vapors or other liquids and then discharge the resultant mixture against a counter pressure.
People also ask, how do Eductors work?
Eductor is a simple type of pump which works on the 'venturi effect' to pump out air, gas or liquid from a specified area. This low pressure or vacuum enables the eductor to suck liquid or gas from a certain area. This liquid or gas is pumped out through the driving fluid discharge.
What is a vacuum jet?
An ejector is a type of vacuum pump or compressor. This steam jet creates a vacuum which extracts air or gas from the adjoining vessel. As these gases are entrained in the steam, the mixture travels through the ejector into a venturi- shaped diffuser.
What is the difference between ejector and eductor?
The eductors are used to remove the air 4 times the volume of the vessel per hour for the vessel entry jobs. whereas the ejectors just suck the excess volume of the system and maintains the system pressure accurately. The difference is with respect to their function and not with respect with their motive fluid.How do you make a vacuum ejector?
Steam jet Ejectors are based on the ejector-venturi principal and operate by passing motive steam through an expanding nozzle. The nozzle provides controlled expansion of the motive steam to convert pressure in to velocity which creates a vacuum with in the body chamber to draw in and entrain gases or vapours.How does the Venturi effect work?
Venturi Principle|How do venturis work. A venturi creates a constriction within a pipe (classically an hourglass shape) that varies the flow characteristics of a fluid (either liquid or gas) travelling through the tube. As the fluid velocity in the throat is increased there is a consequential drop in pressure.How vacuum is produced?
Vacuum, space in which there is no matter or in which the pressure is so low that any particles in the space do not affect any processes being carried on there. A vacuum can be created by removing air from a space using a vacuum pump or by reducing the pressure using a fast flow of fluid, as in Bernoulli's principle.What is the purpose of ejector?
The purpose of the ejector is to transport and compress a weight of induced fluid from the suction pressure to the exit pressure. By staging ejectors it is possible to obtain a very large range of suction pressures from atmospheric down to as low as one micron of mercury absolute.How vacuum is maintained in condenser?
Condenser is mainly used to convert the low preassure steam at the end of the turbine to liquid so that the process is continued . Hence when the condensing process happens, volume of steam reduces and basic vacuum is created. Simply as liquids takes up less volume than gases whenever a steam is liquified..What is water ring vacuum pump?
Liquid ring vacuum pumps are rotating positive displacement machines providing process vacuum in industrial applications such as chemical, electrical power, environmental, food & beverage processing and packaging, marine, mining, oil & gas, pharmaceutical, pulp & paper and textiles.How does a hotwell work?
The condenser hotwell serves as a water reservoir for the turbine cycle. When hotwell level reaches the low point, a valve opens to supply make-up water to the cycle. When hotwell level reaches the high end of the level range, a dump valve opens to move the condensate from the hotwell to a condensate storage tank.Why does Bernoulli's principle work?
Bernoulli's Principle states that faster moving air has low air pressure and slower moving air has high air pressure. Air pressure is the amount of pressure, or "push", air particles exert. It is this principle that helps us understand how airplanes produce lift (or the ability to get into the air).How does the ejector work?
Principle of EjectorThe operating principle of the ejector is the pressure energy in the motive fluid is converted to velocity energy by an adiabatic expansion in the Converging/Diverging Nozzle. Due to the pressure drop of the motive fluid, it will create a low-pressure zone before the mixing chamber.What does Bernoulli's principle explain?
Bernoulli's principle, physical principle formulated by Daniel Bernoulli that states that as the speed of a moving fluid (liquid or gas) increases, the pressure within the fluid decreases. Since the speed is greater in the narrower pipe, the kinetic energy of that volume is greater.How do you size an eductor?
To find the correct eductor for this application, use -25 Ft of suction lift. Then size from the tables.
Example:
- Hf = Friction Loss = 2 Ft.
- Hs = Liquid Lift = -14 Ft.
- Ps = Suction Pressure or Atmospheric Pressure = 12.6 PSIA.
- Pvp = Liquid Vapor Pressure = 3.73 PSI.
- Sg = Specific Gravity = 0.978.
