How do I add a circuit to my breaker box?

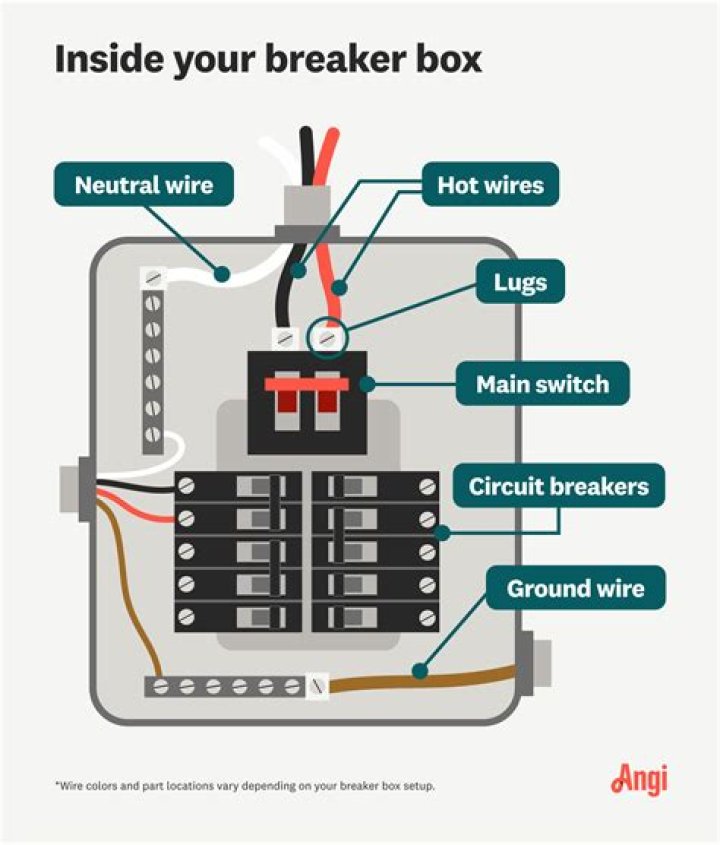

If you're installing a breaker on a subpanel, place the neutral and ground on separate bus bars. Neatly route the black and white wires to the empty breaker space. Attach the wires to the breaker and then snap it into the box, or install the breaker first and insert the wires last.

Similarly one may ask, how do I add a breaker to my panel?

Open the panel and remove the panel cover. Using an insulated electrical screwdriver, install new circuit wires into the gems and neutral bus bars. Install a hot wire into the new breaker, and then line up the breaker into position and snap it into place. Punch out a blank on your breaker cover panel and install it.

Subsequently, question is, what color wire goes to the breaker? The hot wire (usually red or black) from each circuit connects to a breaker. If you're installing an AFCI breaker (as shown on the following pages), you'll also connect the neutral wire to the breaker.

Also to know, how much does it cost to add a circuit breaker?

Average Price to Install a New Main Breaker Box or Sub Panel - $500. The cost to install a new electrical breaker box or sub panel is about $500. Exact cost depends on the number of circuits and the amperage of the unit. If the main box is full, installing an extra one will allow homeowners to add more circuits.

How many outlets can be on a 15 amp breaker?

for a 15 amp circuit this allowed for 10 outlets and on a 20 amp circuit 13 outlets were allowed.

How do I run electricity from my house to my shed?

Run 14-2 NM wires throughout the shed and tie them through electrical wire boxes. Attach any desired fixtures in the shed or on outside and run wire as needed. Tie in 14-2 NM wires from fixtures and receptacles into sub panel breakers as needed. Turn off the electricity inside the home at the main breaker panel.

How do I replace a circuit breaker?

Here's how to replace your circuit breaker:

Shut off the branch circuit breakers one at a time.
Shut off the main circuit breaker.
Test all the wires with a voltage tester to make sure they're dead before proceeding.
Remove the panel cover.
Disconnect the wire of the breaker you're removing from the load terminal.

Where does the ground wire go in a breaker box?

The Ground WireAs a practical matter in household electric circuits, it is connected to the electrical neutral at the service panel to gaurantee a low enough resistance path to trip the circuit breaker in case of an electrical fault (see illustration below).

How many outlets can be on a circuit?

One rule of thumb is to assign a maximum draw of 1.5 amps to each receptacle, which allows for 10 receptacles on a 20-amp circuit.

Do I need a permit to add a circuit breaker?

Minor electrical work, such as replacing a light fixture or an electrical outlet, often does not require a permit. Replacing a circuit breaker in-kind will not require a permit either.

What are the signs of a bad breaker?

Circuit Breaker Warning Signs

Burning Smell in the Electrical Panel. One way to tell if you need a circuit breaker replacement is to sniff around and see if you smell a burning odor coming from the panel.
Breaker Will Not Remain Reset.
Physical Damage.
Breakers Tripping Frequently.
Old Age.

Can I add more breakers to my panel?

If there is no open space, local codes may allow you to replace a single breaker with a tandem breaker, which supplies power to two circuits. Make sure you do not overload your service panel. For example a 100-amp service panel may have circuit breakers that add up to more than 200 amps. This is normal.

How much does it cost to replace a 20 amp breaker?

ft. In our example, this would cost about $130-$170. Replacing breakers: replace a standard 15-60 amp circuit breaker for between $35-$60 each. Some homes require a replacement of a standard Arc Fault Circuit Interrupter (AFCI) 15-20 amp circuit breakers and each breaker will cost between $45-$75.

Can I replace a breaker myself?

You can replace the circuit breaker by just removing the panel cover. Once you have removed the cover then you can disconnect the wire from the faulty breaker and pull it out of the way. Take note of how the breaker fits in the panel and locks into position so that you can put the new circuit breaker in correctly.

Do you need a permit to upgrade electrical panel?

Explanation: Upgrading any electrical service is required to provide a permit to ensure the electrical was installed correctly. This is for the home owners safety. Explanation: If you upgrade to a higher amperage. Yes a permit is needed.

What appliances need dedicated circuits?

Dedicated circuits are required by the National Electrical Code for major electrical appliances such as refrigerators, stoves, washers, dryers, space heaters, and more.

Appliances that need a dedicated circuit include:

Electric ranges.
Wall ovens.
Refrigerators.
Microwaves.
Freezers.
Dishwashers.
Garbage disposals.
Toasters.

Can you change a breaker without turning the power off?

one side of your box will be hot unless they shut it off on the street. you can snap a new breaker in there without shutting down.

What is the symbol for a circuit breaker?

225 A/3P Indicates the fixed circuit breaker represented by the symbol as a 225 ampere, three-pole breaker. Indicates that the transformer represented by the symbol is connected delta-wye.

How do you wire a single pole circuit breaker?

Installing a basic single-pole circuit breaker involves 4 steps:

Feed the cable into the breaker panel.
Connect the ground wire.
Connect the neutral wire.
Connect the hot wire to the breaker and snap it in place.

Can neutral and ground be connected together?

No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.
