What is the maximum height of a circuit breaker?

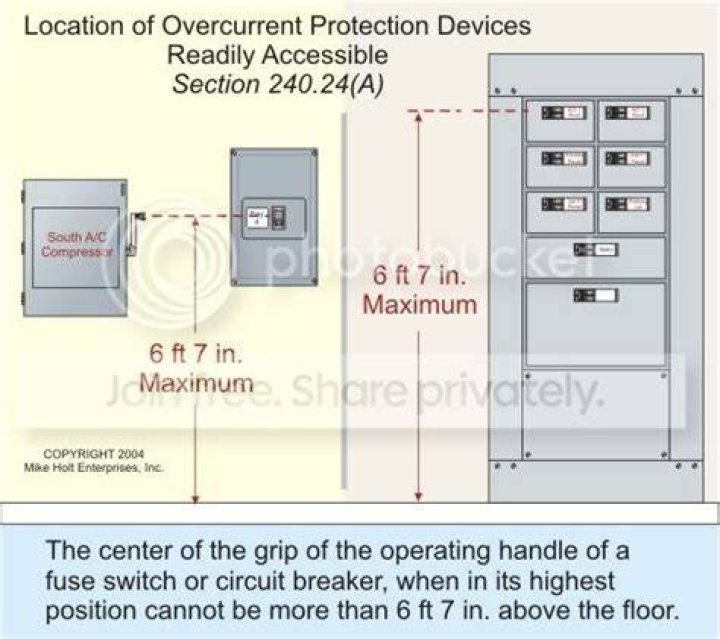

All switches and circuit breakers used as switches must be readily accessible to comply with 404.8(A). The center of the grip or operating handle of the switch or circuit breaker cannot be more than 6 feet 7 inches above the floor or platform when in its highest position.

In this regard, what is the maximum height of a service disconnect?

There is no maximum height listed for the service disconnect, other than it must be readily accessable. The max height for other similar switches is 2.0 meters (6 ft, 7 inches), but this dimension does not appear to be associated with service disconnects for some reason.

One may also ask, how high should a sub panel be mounted? Sub Panel - NEC code. The mounting height should be 6'6" to the center of the panel.

People also ask, what is the minimum height of an electrical panel?

The electrical equipment itself may have a height that is less than 6¹/₂ feet, but if it is mounted so the top of the equipment is higher than 6¹/₂ feet, the minimum working space height shall be the equipment height.

What is the clearance for electrical panels?

Codes and Standards Related to Electrical Panels For equipment serving between 120 volts and 250 volts, the regulations require a mini- mum of three feet of clearance. The width of the working space in front shall be 30 inches minimum or width of the equipment. The OSHA standard (29 CFR1910.

How many disconnects are allowed on a residential home to turn off?

A common rule of thumb is 6 breakers max to be switched off to cut all power to a home; more than 6 you need a separate main switch. In a typical main panel, up to 2 main switches are allowed as main disconnect for the panel.

How high do you mount a meter base?

The ideal height of an electrical meter is five feet from the ground to the center of the box. This height is agreed upon by most utility companies. While some companies specify a different maximum height for a meter, they mostly agree on an ideal height of five feet.

Can a circuit breaker be used as a disconnect switch?

When a circuit breaker is designed to also be routinely used as an on-off switch to control 277 volt florescent luminaires they are marked SWD, for switch duty. While circuit breakers can be legitimately and safely used as switches, the frequency and duration of such use is very limited.

Can main breaker be at bottom of panel?

Main breaker is at bottom of panel. Most panels can be mounted either way as long as the breakers operate side to side.

Can you put a subpanel in a closet?

Safely Installing Electrical and Service Panels in Residential Closets. ANSWER: According to Section 240-24(d) of the National Electrical Code (NEC), which says “Overcurrent devices shall not be located in the vicinity of easily ignitable material, such as in clothes closets,” you are not permitted to do this.

Can you have an electrical panel in a bedroom?

The NEC does not prohibit a panelboard or overcurrent device from being located in a bedroom.

How far off the ground does a disconnect have to be?

The disconnect can be anywhere from 1" off the ground, or 50 feet above unit(within sight), if accesible. Actually the disconnecting means is required to be readily accessible not just accessible.

How far can a disconnect be from an AC unit?

This distance is typically described as within 50 feet (3 meters), and in practice at most residential properties the disconnect is much closer (3-6 ft), on a wall or standard near the compressor/condenser unit.

Where do I put my breaker panel?

According to the NEC, the working space around the breaker panel must be at least 6′ 6” high and 3 feet square away from the wall, with 30” width. This allows the door to be opened to the panel, with nothing blocking the area.

How high does an electrical box have to be from the floor?

between 12 to 18 inches

Can I install electrical panel upside down?

Just about all modern electric panels can be mounted upside down, meaning that the main breaker is located at the bottom instead of the top.

Can a breaker box be outside?

3 Answers. They are almost always on an exterior wall. In some areas they are on the outside of the exterior wall - outside your house. It is, however, common, to have the meter base on the outside of the house, feeding a service panel on the inside of the house.

How high should a consumer unit be?

Approved Document M recommends that in new dwellings, switches, sockets and other equipment should be located between 450mm and 1200mm from finished floor level, it also suggests that consumer units are mounted so that the switches are between 1350mm and 1450mm above floor level.

How high is a light switch from the floor?

Standard Height for Light Switch BoxesThe standard height for wall switches in most rooms (excluding those over kitchen counters) is 48 inches above the top of the floor covering (measured to the bottom of the box).

Can you install an electrical panel in a bathroom?

Is it legal to have an electrical panel located in a bathroom? An electrical panel containing the service disconnecting means cannot be located in a bathroom [230.70(A)(2)]. In dwelling units and guest rooms or suites of hotels and motels, overcurrent devices cannot be located in bathrooms [240.24(E)].

How do you install a subpanel?

In the subpanel, route the feeder wires, cut and strip them, and connect to terminals. Connect the black and red wires to the hot bus bars, the neutral wire to the main neutral terminal, and the ground wire to the ground bus bar.

How much clearance is required in front of electrical cabinets?

To be on the safe side, the working space and space around electrical equipment should always be clear per 110.26(A), if possible. As a basic rule, there should be at least 3 feet of space in front of all equipment with a 30 inch width as well as 6½ feet of headroom space.
