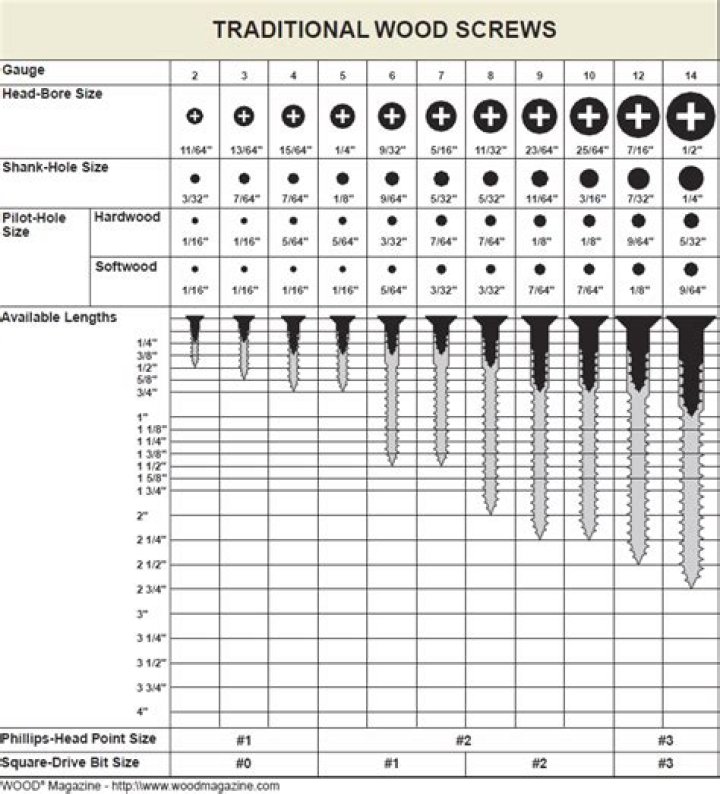

What size is a #14 wood screw?
Michael Green Wood Screw Diameters
| Size | Major Thread Diameter* | |
|---|---|---|
| Decimal | Nearest Fractional Measurement | |
| #11 | .203" | 13/64" |
| #12 | .216" | 7/32" |
| #14 | .242" | 1/4" |
Also question is, is a #14 screw the same as 1 4?
#14 is close to, but not exactly the same as, 1/4-inch.) The major diameter in Unified threads = 0.060″ + 0.013″ x (numbered diameter). So #2 has a major diameter of 0.086″.
Subsequently, question is, is a #8 or #10 screw bigger? Machine screws are often found in sizes of: 0, 1, 2, 3, 4, 5, 6, 8, 10, 12, 14—the larger the number, the larger the screw.
Then, how do you determine the size of a wood screw?
So the length of a flat head wood screw is measured from the tip to the top of the head, but the length of a round head screw is measured from the tip to the bottom of the head. In the common wood screw the thread extends 2/3rds of the length of the screw.
What diameter is a 4g screw?
Metric Screw Sizes Explained As a handy coincidence, the Gauge (imperial) roughly equals the screw head size in millimetres. A 4 gauge screw will have a head that is approximately 4mm wide.
How big is a #10 screw?
US Machine Screw Diameters
| Size | Thread Diameter | |
|---|---|---|
| Decimal | Nearest Fractional | |
| #10 | 0.19" | 3/16" |
| #12 | 0.21" | 7/32" |
| #14 | 0.24" | 1/4" |
How do you measure a drill bit for a screw?
Wood Screw Diameter:Hold the shaft of the drill bit up in front of the screw. You should only be able to see the threads of the screw (and maybe a bit of the screw). If you can't see the threads the drill bit is too big. If you can see too much of the screw, the bit is too small.How do I measure screw size?
Length is measured from the point at which the head sits flat with the surface, to the tip of the threads. Hex, pan, truss, button, socket cap, and round head screws are measured from right under the head to the end of the threads. Flat head screws are measured from the top of the head to the tip of the threads.How big is a #6 screw?
Screws have three basic measurements: gauge, threads per inch, and shaft length in inches. So, you may also see a measurement like 6-32 x 1 1/2". This means it's a #6 diameter, with 32 threads per inch (almost double the normal thread count as a standard wood screw) and an inch and a half long.What size drill bit to pre drill for a #10 screw?
Drill bit sizes for pre-drilling (most commonly used sizes in bold)
| Screw Size | Pilot hole size for hardwoods* | Pilot hole size for softwood** |
|---|---|---|
| #9 | 1/8 | 3/32 |
| #10 | 1/8 | 7/64 |
| #11 | 5/32 | 9/64 |
| #12 | 9/64 | 1/8 |
Is a #10 or #12 screw bigger?
You can identify a 10-32 screw by measuring the diameter at exactly 3/16″ (4.76 mm). 12-24 rack screws are more common than 10-32 in pre-threaded racks. They are slightly larger and courser than 10-32 hardware. The number “12” is a size designator with no numerical meaning.What do the numbers mean on screw sizes?
What do the numbers - such as 8-32 mean on a machine screw? The first number is the diameter. The bigger the number the bigger the screw. The second number is the number of threads per inch.Is a #12 screw the same as 1 4?
A #8 screw size is . 164 fraction of an inch. The diameters listed in the chart below are in fractions of an inch, so the #12 is just shy of 1/4 inch. A more detailed table with thread count can be found below, along with tap drill sizes.What is a #10 wood screw?
Wood Screw Diameters
| Size | Major Thread Diameter* | |
|---|---|---|
| Decimal | Nearest Fractional Measurement | |
| #9 | .177" | 11/64" |
| #10 | .190" | 3/16" |
| #11 | .203" | 13/64" |
How long should a wood screw be?
The most important factor in screw selection is length. The general rule of thumb is that the screw should enter at least half the thickness of the bottom material, e.g. 3/4″ into a 2 x 4.What is the shortest wood screw?
The smallest diameter screw is 0, and the largest commonly available is 24.How long should a fence screw be?
Fastener lengthWhether you choose to use screws or nails, the length is crucial to the success of your fence. To attach preassembled panels or backer rails to posts, we recommend 18d to 20d nails or 3-1/2 in. to 4 in. long screws.How do you get a screw out of wood?
Grasp the screw shank with locking pliers and slowly turn it counterclockwise until it's free. Two: the screw breaks at the wood surface. Use the tip of a utility knife with a sharp blade to cut away just enough wood around the shank for the locking pliers to gain a firm grip and back out the screw.How do you measure Torx size?
Usually, a Torx screw is star-shaped, and each has its measurements. Use a tape measure to determine the standard blade screw head slot. You can use a ruler or a tape measure for this one. Once you have identified the measurements, it is time to go to the market and make your purchase.What size is an 8 32 screw?
Tap and Clearance Drill Sizes
| Screw | O.D. | Free Fit |
|---|---|---|
| 6-32 | 0.1380 | 25 |
| 8-32 | 0.1640 | 16 |
| 10-24 | 0.190 | 7 (13/64) |
| 10-32 | 0.1900 | 7 (13/64) |
